Reinforced Rubber Waterstop with Expansible Strip
Reinforced rubber waterstop, also named hydrophilic rubber waterstop, swelling rubber waterstop, can expand when it is in touch with water which mainly depend on the expansible strip. Hydrophilic rubber waterstop is made from natural rubber or synthetic rubber, adding various additives and fillers, through the process of plasticizing, mixing, pressing, forming. Buried rubber waterstop, back stick rubber waterstop, steel edge rubber waterstop with waterproof line can be made into reinforced rubber waterstop. It uses unequal thickness structure, can be divided into high-strength area, the waterproof area and the installation area, allowing for uniform and reasonable stress for all portions. Telescopic holes' outer wall is plane; there are mounting holes in installation area which can make waterstop convenient to fix with the nearest steel bar, difficult to move.

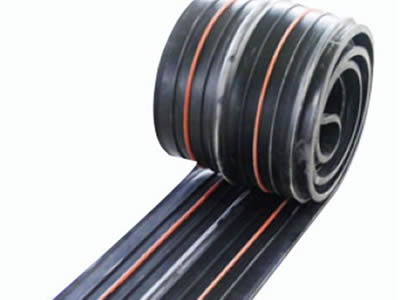

RRW-1: Swelling strip can expand in touch with water.

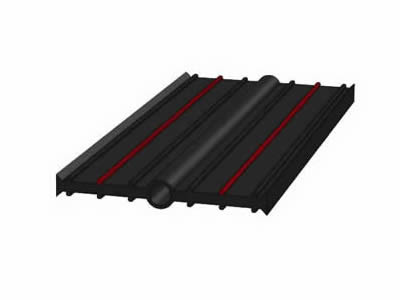

RRW-2: Hydrophilic rubber waterstop has good waterproof performance.

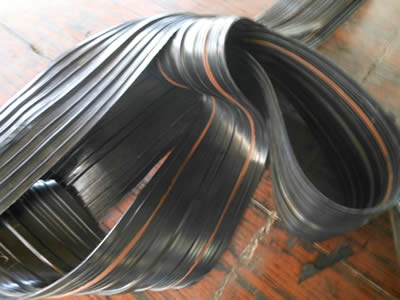

RRW-3: Swelling rubber waterstop has high tensile strength.

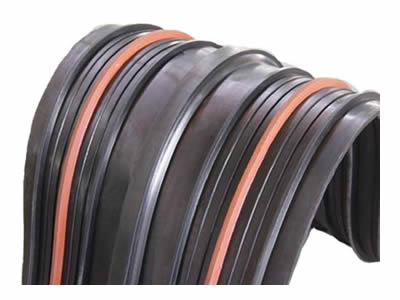

RRW-4: Reinforced rubber waterstop has high elasticity.

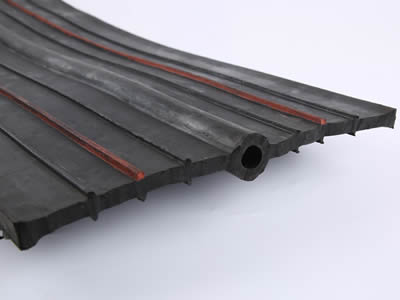

RRW-5: 651 buried reinforced rubber waterstop with round bulb.
RRW-6: Vertical 651 buried reinforced rubber waterstop with round bulb.

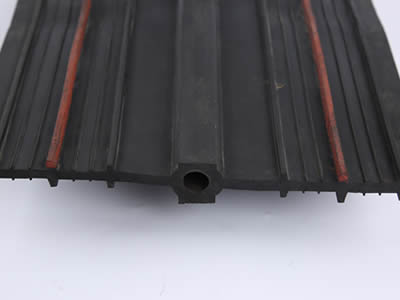

RRW-7: Buried reinforced rubber waterstop with round bulb linked two projections.

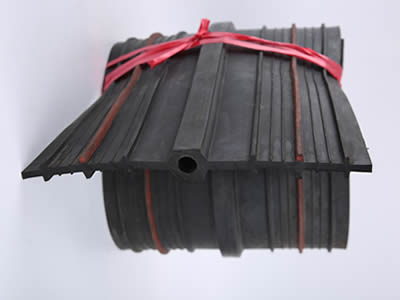

RRW-8: A roll of buried reinforced rubber waterstop.

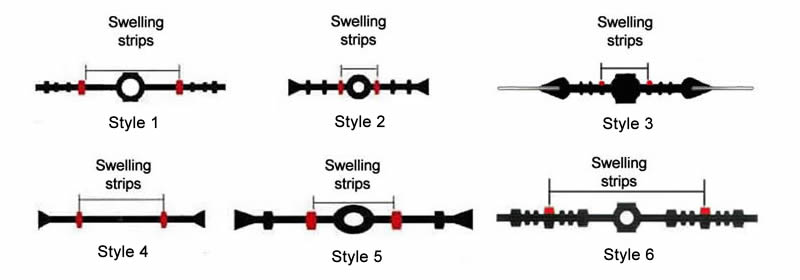

RRW-9: Different types of reinforced rubber waterstop.
Specification
- Material: PVC or rubber.
- Species: buried rubber waterstop, back stick rubber waterstop, steel edge rubber waterstop with waterproof line.
- Width: 200-400 mm.
- Thickness: 6-12 mm.
| Number | Item | Index | |||||
|---|---|---|---|---|---|---|---|
| B | S | J | |||||
| 1 | Hardness (shore A) | 60±5 | 60±5 | 60±5 | |||
| 2 | Tensile Strength (MPa) ≥ | 15 | 12 | 10 | |||
| 3 | Elongation at Break % ≥ | 380 | 380 | 380 | |||
| 4 | Compression Set | 70°C × 24 h % ≤ | 35 | 35 | 35 | ||
| 23°C × 168 h % ≤ | 20 | 20 | 20 | ||||
| 5 | Tearing Strength KN/m | 30 | 25 | 25 | |||
| 6 | Brittleness Temperature °C ≤ | -45 | -40 | -40 | |||
| 7 | Hot Air Aging | 70°C × 168 h | Hardness (shore A) ≤ | +8 | +8 | - | |
| Tensile Strength (MPa) ≥ | 12 | 10 | - | ||||
| Elongation at Break % ≥ | 300 | 300 | - | ||||
| 100°C × 168 h | Hardness (shore A) ≤ | - | - | +8 | |||
| Tensile Strength (MPa) ≥ | - | - | 9 | ||||
| Elongation at Break % ≥ | - | - | 250 | ||||
| 8 | Ozone aging 50 pphm: 20%, 48 h | Grade 2 | Grade 2 | Grade 0 | |||
| Note: If there are other requirements, inspection items can be appropriately added according to buyer and seller. If evaluating mold test in line with users, its anti-mold property should be equal to or above Grade 2. | |||||||
Feature
- Expansible strip can expand when it is in touch with water.
- Adapt the deformation of concrete.
- High elasticity and tensile strength.
- Can arise compression deformation under various loads.
- Resistant to wear, aging, rust.
- Good waterproof performance.
- Easy to install.
Application
Reinforced rubber waterstop is mainly used in construction joints, expansion and contraction joints of concrete structures, such as dams, reservoirs, subway, culverts, tunnels, cisterns, swimming pools, roof, aqueducts, basement, artificial lakes, sewage treatment plants, etc.
